• Wheels, 4 - 15" x 6" (38.1 cm x 15.2 cm) steel
• Tires, P205/75R15 all-season, blackwall (2WD models only)
• Tire, compact spare located at rear underbody of vehicle
• Bumpers, front and rear chrome with a Dark Smoke Gray pad on the rear step-style bumper
• Fascia, front Dark Smoke Gray
• Air dam, Ebony
• Grille, chrome bar with Dark Smoke Gray surround
• Mirrors, outside manual, manual-folding
• Wipers, front intermittent with washers
• Bedliner
• Tailgate, 2-position

• Audio system, AM/FM stereo with seek-and-scan and digital clock (does not include (UE1 OnStar) (Upgradeable to (US8) AM/FM stereo with CD/MP3 player and (UE1) OnStar)

• Seats, front 60/40 split-bench with vinyl integral outboard head restraints and dual cup holders
• LS decor
• Floor covering, full-width rubberized-vinyl (Upgradeable to (B30) color-keyed carpeted floor covering)

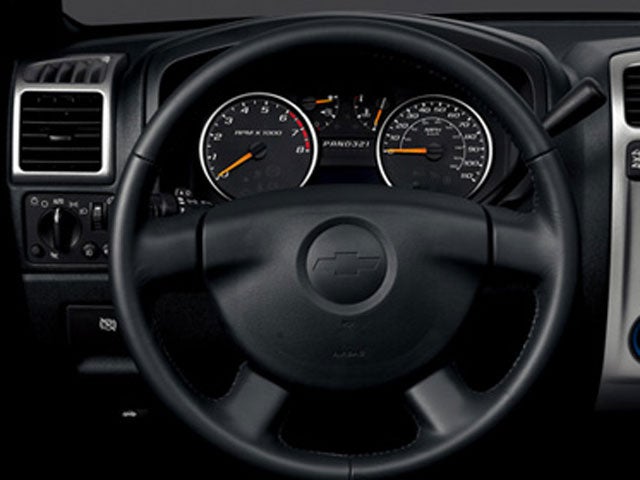

• Steering wheel, 4-spoke Deluxe
• Steering column, Tilt-Wheel
• Theft-deterrent system, vehicle, PASSlock
• Warning tones, headlamp on, key-in-ignition, driver safety belt unfasten, turn signal on and critical Driver Information Center active
• Tire Pressure Monitor
• Door locks, manual
• Windows, manual driver and front passenger
• Cruise control
• Air conditioning, single-zone manual
• Power outlets, 2 auxiliary with covers, 12-volt
• Door trim, integral armrests and driver- and front passenger-side map pockets
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger, padded with cloth, includes front passenger vanity mirror
• Assist handle, front passenger
• Coat hook, passenger-side rear

• Brakes, 4-wheel antilock, front disc/rear drum
• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Safety belts, 3-point, driver and right-front passenger, adjustable (center front position lap belt with bench seat only)
• Tether anchor, front, for child safety seats
• Daytime Running Lamps, with automatic exterior lamp control

ENGINE, 2.9L DOHC 4-CYLINDER MFI ($0)

(185 hp @ 5600 rpm) 190 lb-ft @ 2800 rpm) (STD)

• TRANSMISSION 5-SPEED MANUAL WITH OVERDRIVE (STD)
• WORK TRUCK PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• MEDIUM PEWTER CLOTH
• AUDIO SYSTEM AM/FM STEREO with seek-and-scan and digital clock (does not include (UE1 OnStar) (STD)
• REAR AXLE 3.73 RATIO
• LICENSE PLATE BRACKET FRONT
• ENGINE 2.9L DOHC 4-CYLINDER MFI (185 hp @ 5600 rpm) 190 lb-ft @ 2800 rpm) (STD)
• SILVER BIRCH METALLIC
• SEATS FRONT 60/40 SPLIT-BENCH WITH LS CLOTH integral outboard head restraints and dual cup holders
• SEATS FRONT 60/40 SPLIT-BENCH WITH VINYL integral outboard head restraints and dual cup holders (STD)
• TIRE COMPACT SPARE located at rear underbody of vehicle (STD)
• Rear Wheel Drive
• Power Steering
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Temporary Spare Tire
• Intermittent Wipers
• Bed Liner
• AM/FM Stereo
• Split Bench Seat
• Adjustable Steering Wheel
• Immobilizer
• Tire Pressure Monitor
• Cruise Control
• A/C
• Power Outlet
• Passenger Vanity Mirror
• ABS
• Front Disc/Rear Drum Brakes
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Daytime Running Lights
• Automatic Headlights

• Mileage
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 24
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 590
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2533
• Gross Axle Wt Rating - Rear (lbs): 2896
• Curb Weight - Front (lbs): 1858
• Curb Weight - Rear (lbs): 1402
• Gross Vehicle Weight Rating Cap (lbs): 4850
• Gross Combined Wt Rating (lbs): 6000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
• Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 360
• Suspension
• Suspension Type - Front: Coil Springs
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2535
• Spring Capacity - Rear (lbs): 2900
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 2533
• Axle Capacity - Rear (lbs): 2900
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 30
• Shock Absorber Diameter - Rear (mm): 30
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.2 x 1.6
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.6 x 2.5
• Tires
• Front Tire Order Code: QCE
• Rear Tire Order Code: QCE
• Spare Tire Order Code: ZAA
• Front Tire Size: P205/75R15
• Rear Tire Size: P205/75R15
• Spare Tire Size: Compact
• Front Tire Capacity (lbs): 1452
• Rear Tire Capacity (lbs): 1452
• Spare Tire Capacity (lbs): 1452
• Wheels
• Front Wheel Size (in): 15 x 6
• Rear Wheel Size (in): 15 x 6
• Spare Wheel Size (in): Compact
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.4
• Steering Ratio (:1), At Lock: 3.31
• Turning Diameter - Curb to Curb (ft): 39.4
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19
• Fuel Tank Location: Inboard LH Frame Rail
• Exterior Dimensions
• Wheelbase (in): 111.3
• Length, Overall w/o rear bumper (in): 192.4
• Width, Max w/o mirrors (in): 67.6
• Height, Overall (in): 64.9
• Overhang, Front (in): 33.9
• Front Bumper to Back of Cab (in): 110.9
• Cab to Axle (in): 34.2
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 26.9
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): -TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 72.8
• Cargo Box Width @ Floor (in): 57.2
• Cargo Box Width @ Wheelhousings (in): 42.6
• Cargo Box (Area) Height (in): 18.6
• Tailgate Width (in): 52.4
• Cargo Volume (ft³): 44.0
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 39.6
• Front Leg Room (in): 42.2
• Front Shoulder Room (in): 57.1
• Front Hip Room (in): 53.3
• Summary
• Vehicle Name: Chevrolet Colorado
• Body Style: Regular Cab
• Body Code: E63
